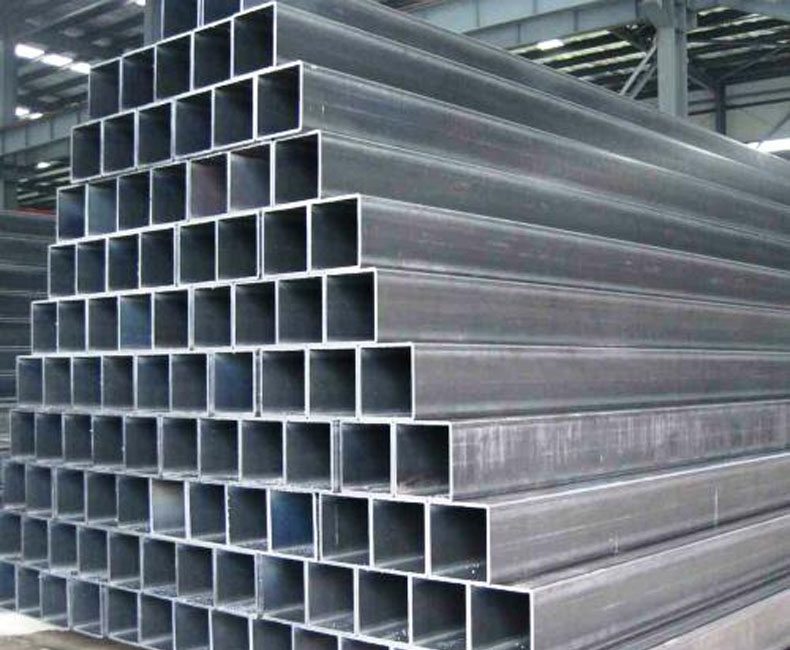

SHS: 15 x 15 - 300 x 300

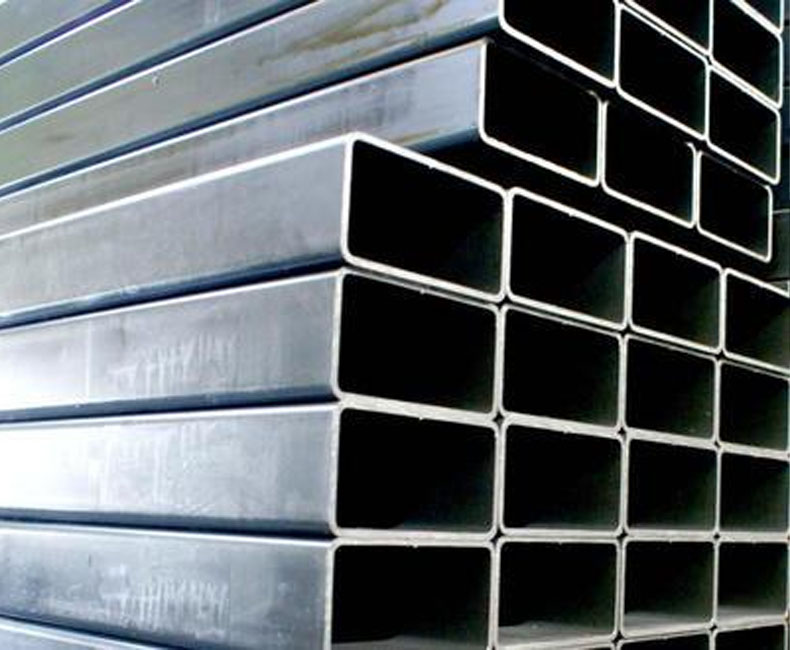

RHS: 40 x 10 - 400 x 200
Thinkness: 1.0 mm - 8.0 mm
Lenth: 3.0 Meter - 12.0 Meter
YST 210
YST 240
YST 310
YST 350
IS 4923:1997
ASTM A-500
EN1029-1:2006
Plain End-square Cut
Tensile Test
Impact Test
Flatting and Flaring Test
Visual and Dimensional Inspection
Chemical Analysis
Cut Length
Black(Self Coloured uncoated)
Outside Protective Coating-oil/Varnish
Hot Dip Galvanized
Pre-Galvanized
Structures
Warehouse
Construction
Furniture
Automotive
Storage System
Machinary
| A) Thickness for all sizes | a) Welded tubes | ± 10% |
| B) Outside Dimensions of Sides | ± 1% of the side to be measured with a minimum of +/- 0.5mm | |
| C) Weight | a) On Individual Lenght | ± 10% – 8%0 |
| b) On Lots of 10 Tonnes | ||
| D) Squareness of Corner | 90° ± 2° | |
| E) Radius of Coners | 3T, max where T is the thickness of section | |
| F) Lenght | a) Exact Length | ± 6mm This may be obtained by arrangements between the Purchaser and Manufacturer |
| b) Random Length | ||
| G) Straightness | Minimum 1: 200th of any lenght measured along the center line (mill straightened condition) unless otherwise specifically arranged |
|
| H) Twist Tolerance | Maximum 2mm: 1:0.5mm, 1mm length, the measured relative vertical shift of any adjacent corner of the section, measured by keeping one side on flat surface |
| Size | Thickness | Nominal Weight Square Tubes | |
| Kg/Meter | Kg/Pc | ||
| 15 X 15 | 1.20 | 0.53 | 3.15 |
| 15 X 15 | 1.60 | 0.69 | 4.15 |
| 20 X 20 | 1.60 | 0.94 | 5.65 |
| 20 X 20 | 2.00 | 1.16 | 6.95 |
| 20 X 20 | 2.80 | 1.56 | 9.35 |
| 25 X 25 | 1.60 | 1.19 | 7.15 |
| 25 X 25 | 2.00 | 1.47 | 8.80 |
| 25 X 25 | 2.50 | 1.80 | 10.80 |
| 25 X 25 | 3.00 | 2.12 | 12.70 |
| 32 X 32 | 2.00 | 1.91 | 11.45 |
| 32 X 32 | 2.50 | 2.35 | 14.10 |
| 32 X 32 | 3.00 | 2.70 | 16.20 |
| 40 X 40 | 2.00 | 2.41 | 14.45 |
| 40 X 40 | 2.50 | 2.98 | 17.85 |
| 40 X 40 | 3.00 | 3.43 | 20.55 |
| 40 X 40 | 3.60 | 4.19 | 25.15 |
| 40 X 40 | 4.00 | 4.61 | 27.65 |
| 50 X 50 | 1.60 | 2.44 | 14.65 |
| 50 X 50 | 2.00 | 3.03 | 18.20 |
| 50 X 50 | 2.50 | 3.76 | 22.55 |
| 50 X 50 | 3.00 | 4.33 | 26.00 |
| 50 X 50 | 3.60 | 5.31 | 31.85 |
| 50 X 50 | 4.00 | 5.87 | 35.20 |
| 50 X 50 | 5.00 | 7.21 | 43.25 |
| 60 X 60 | 2.00 | 3.66 | 21.95 |
| 60 X 60 | 3.00 | 5.41 | 32.45 |
| 60 X 60 | 3.60 | 6.44 | 38.65 |
| 60 X 60 | 4.00 | 7.12 | 42.70 |
| 60 X 60 | 5.00 | 8.78 | 52.65 |
| 72 X 72 | 2.00 | 4.41 | 26.45 |
| 72 X 72 | 2.50 | 5.47 | 32.80 |
| 72 X 72 | 3.00 | 6.33 | 37.95 |
| 72 X 72 | 3.60 | 7.79 | 46.75 |
| 72 X 72 | 4.00 | 8.62 | 51.70 |
| 72 X 72 | 5.00 | 10.65 | 63.90 |
| 80 X 80 | 3.00 | 7.29 | 43.75 |
| 80 X 80 | 4.00 | 9.62 | 57.70 |
| 80 X 80 | 5.00 | 11.91 | 71.45 |
| 91 X 91 | 3.00 | 8.32 | 49.90 |
| 91 X 91 | 4.00 | 11.00 | 66.00 |
| 91 X 91 | 5.00 | 13.63 | 81.75 |
| Size | Thickness | Nominal Weight Square Tubes | |
| Kg/Meter | Kg/Pc | ||
| 100 X 100 | 2.00 | 6.16 | 36.95 |
| 100 X 100 | 3.00 | 8.87 | 53.20 |
| 100 X 100 | 3.60 | 10.94 | 65.65 |
| 100 X 100 | 4.00 | 12.13 | 72.75 |
| 100 X 100 | 5.00 | 15.00 | 90.00 |
| 100 X 100 | 6.00 | 17.83 | 107.00 |
| 113 X 113 | 3.00 | 10.39 | 62.35 |
| 113 X 113 | 4.00 | 13.75 | 82.50 |
| 113 X 113 | 5.00 | 17.07 | 102.40 |
| 120 X 120 | 4.00 | 14.62 | 87.70 |
| 120 X 120 | 5.00 | 18.15 | 108.90 |
| 132 X 132 | 3.00 | 12.17 | 73.00 |
| 132 X 132 | 4.00 | 16.13 | 96.80 |
| 132 X 132 | 5.00 | 20.03 | 120.20 |
| 132 X 132 | 6.00 | 23.73 | 142.40 |
| 150 X 150 | 3.00 | 13.83 | 83.00 |
| 150 X 150 | 4.00 | 18.33 | 110.00 |
| 150 X 150 | 5.00 | 22.83 | 137.00 |
| 150 X 150 | 6.00 | 27.17 | 163.00 |
| 150 X 150 | 8.00 | 34.17 | 205.00 |
| 180 X 180 | 4.00 | 22.17 | 133.00 |
| 180 X 180 | 5.00 | 27.50 | 165.00 |
| 180 X 180 | 6.00 | 32.83 | 197.00 |
| 180 X 180 | 8.00 | 43.50 | 261.00 |
| 200 X 200 | 4.00 | 24.67 | 148.00 |
| 200 X 200 | 5.00 | 30.67 | 184.00 |
| 200 X 200 | 6.00 | 36.67 | 220.00 |
| 200 X 200 | 8.00 | 46.67 | 280.00 |
| 220 X 220 | 4.00 | 27.17 | 163.00 |
| 220 X 220 | 5.00 | 33.67 | 202.00 |
| 220 X 220 | 6.00 | 40.33 | 242.00 |
| 220 X 220 | 8.00 | 51.67 | 310.00 |
| 250 X 250 | 4.00 | 30.83 | 185.00 |
| 250 X 250 | 5.00 | 38.50 | 231.00 |
| 250 X 250 | 6.00 | 46.00 | 276.00 |
| 250 X 250 | 8.00 | 58.33 | 350.00 |
| 300 x 300 | 5.00 | 46.50 | 279.00 |
| 300 x 300 | 6.00 | 55.67 | 334.00 |
| 300 x 300 | 8.00 | 73.83 | 443.00 |
